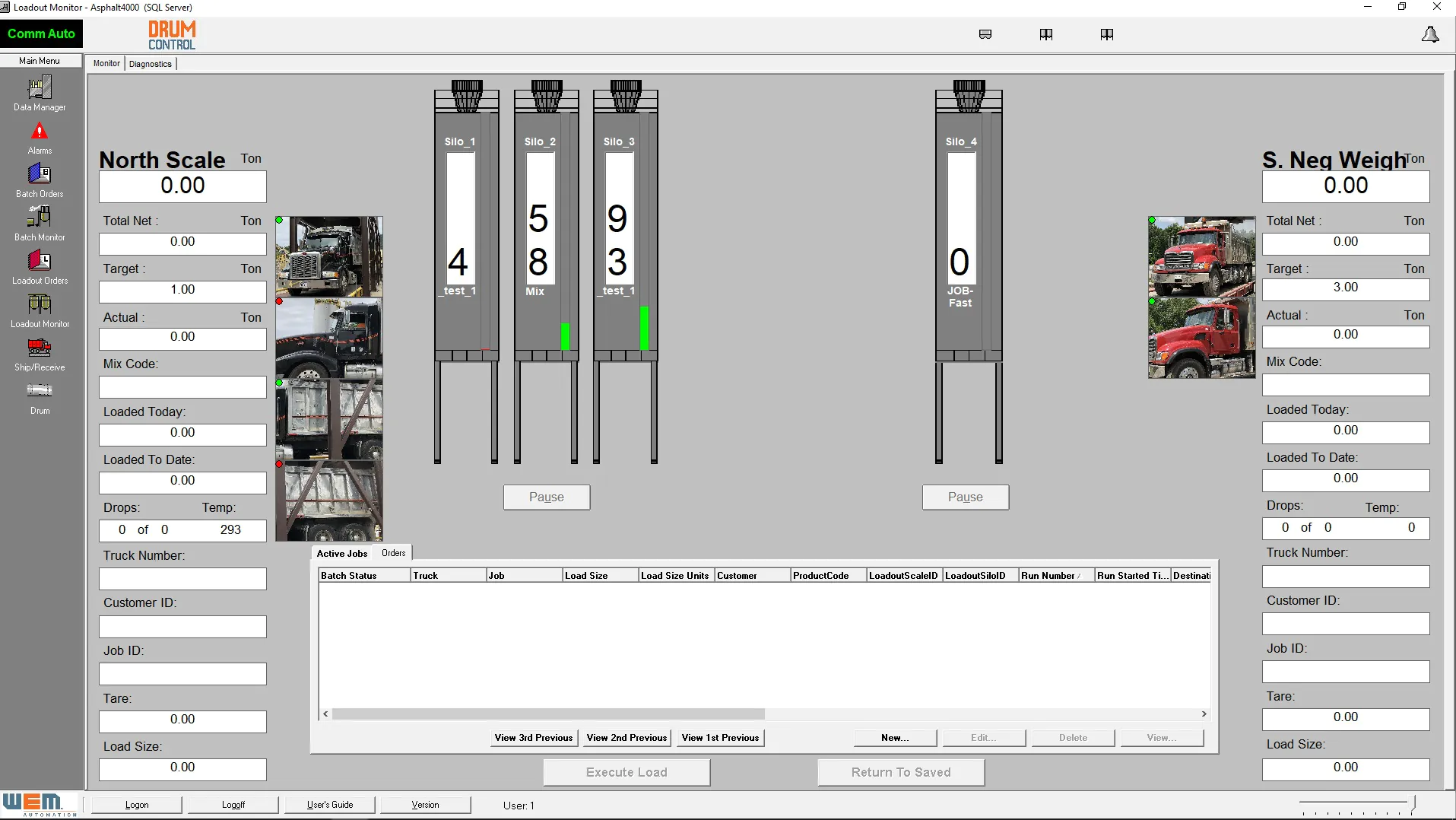

The WEM4000 Asphalt Silo Loadout Control is an adaptable, user-friendly system for automatic silo loadout. It supports multiple scales, automated and manual ticketing, and customizable reports.
With built-in data transfer utilities, it easily integrates with business management systems. PC/PLC-based with off-the-shelf parts, it ensures maximum uptime and efficiency.
STANDARD FEATURES INCLUDE
Single/double loadout systems
Truck loadout (Positive weight) – scale indicates gain in weight as silo discharges
Batcher loadout (Positive weight) – scale indicates gain in weight at the batching hopper
Silo level indication
Loadout scale hold
Handbook 44 weight indicators – NIST Compliance
Loadout ticket printing
Each truck scale supports up to six silos
Silo loadout (Negative weight) – scale indicates loss in weight as silo discharges
Loadout diagnostics – real time display of all controlled input and output actions
Loadout pause/resume
Truck in place
Multi-range freefall compensation
OPTIONS INCLUDE
Handwired manual controls
Remote ticket printing
Camera integration
Third party loadout systems and ERP interfaces
Bar Code and RFID truck identification
The WEM4000 camera interface allows viewing and recording of various plant operations. Images can be displayed on multiple monitors, replayed, and shared within transactional data.
This feature captures truck details like mass and license numbers for tracking and order resolution. The video option can monitor truck compartments, plant areas, and more.
OPTIONS INCLUDE
Resolve Order Inquiries
Signatures No Longer Needed
Monitor Live Plant Activity
Streamline traffic flow and enhance driver safety.
WEM Automation understands that operators should run the plant while drivers remain in their vehicles, minimizing printer issues for efficient operation and a safe yard.
Our remote printing capabilities significantly improve operational speed and safety by keeping drivers in their trucks. Additional features like signatures and cameras reduce the need for driver-plant interaction..
The laser printer is popular for its availability of replacements and standard paper options. These rear discharge printers drop tickets into a protected tray for easy driver access.
They’re preprinted standard-size stock for multiple copies, which can be color-coded for easy identification.

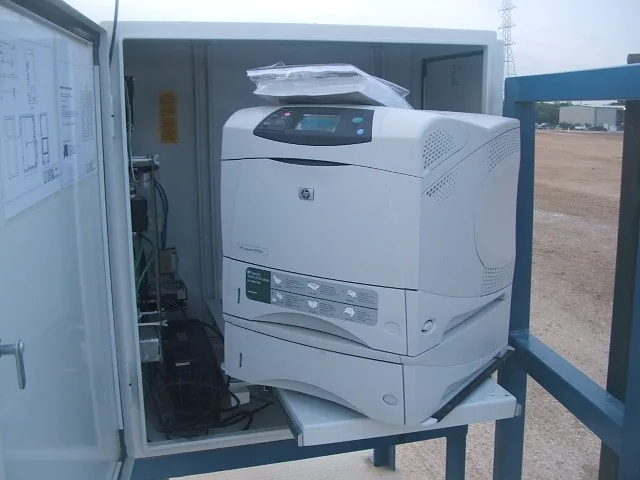

Our custom remote printer enclosure houses either a thermal or laser printer. Installed at load height, it allows drivers to pick up scale tickets without leaving their vehicles. The enclosure is made of industrial steel and includes a heater and cooling fan system.

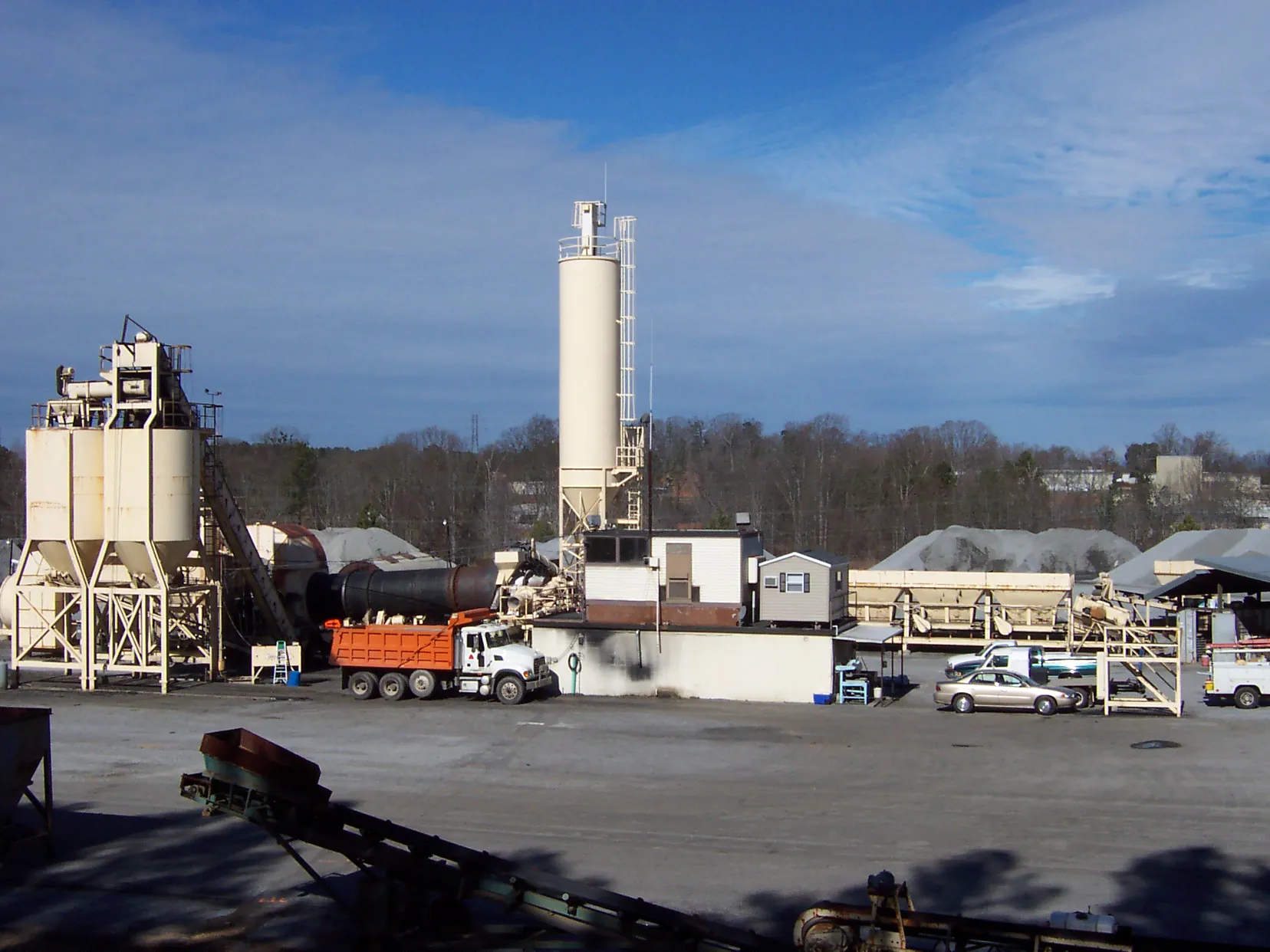

Radio-frequency identification (RFID) is the latest technology used in the asphalt industry.
RFID tags store electronically accessible information and do not require line of sight for reading, allowing them to be embedded in trucks.
Each tag contains unique information, including Truck Identification Number(s), Company Name, and License Plate Number.
RFID readers at the plant collect information as trucks pass, using it to automate various operations, such as opening access gates, issuing tickets, activating display boards and traffic lights, and managing receiving and loadouts.
The aim is to achieve automation in the receiving and loadout process.
KEY BENEFITS
Increases the throughput of mass per day
Eliminates clerical errors and data entry
Reduces loadout / ticketing error
Reduces overheads to staff entry points and clerical work
Keeps drivers in their trucks, improving safety
